Architecture & contracts

Solidity 0.8.34, Foundry, EVM cancun (EIP-1153 transient storage). 7 packages, monorepo. Deployed addresses (beta + production TBA) at the bottom of this page.

Dependency graph

Section titled “Dependency graph”

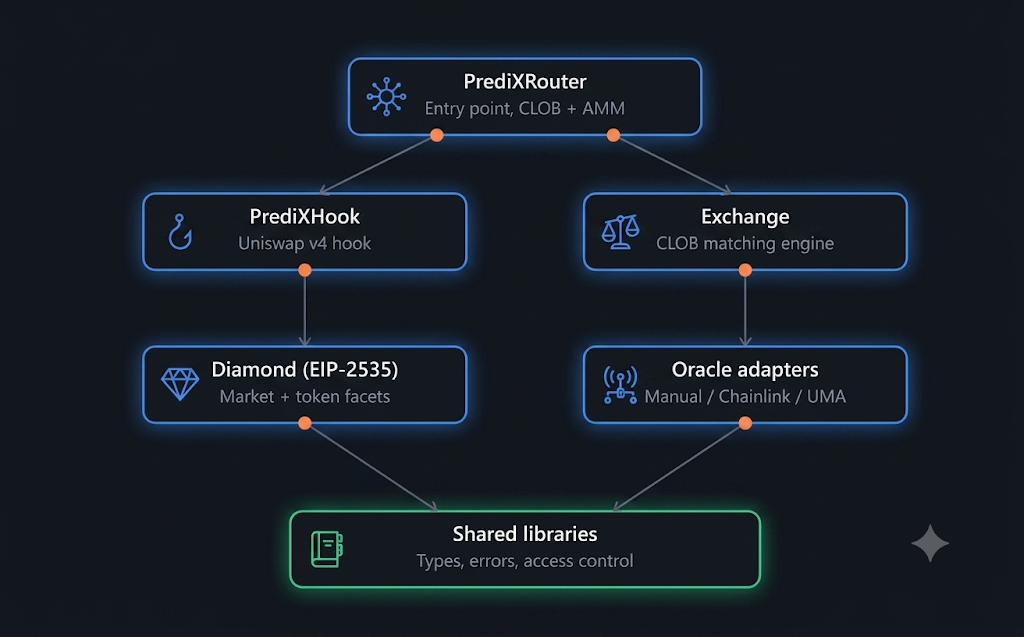

SC dependency: shared -> oracle/diamond -> hook/exchange -> router. Cross-package import only via @predix/shared/interfaces

Rule: cross-package imports are only allowed via @predix/shared/interfaces/. No importing implementations from other packages.

Diamond (EIP-2535)

Section titled “Diamond (EIP-2535)”

Single proxy PrediX Diamond with 6 facets. Each facet is independently upgradeable.

Facet Responsibility
MarketFacet createMarket - split - merge - resolve - redeem - emergencyResolve - refundMode - sweep
EventFacet createEvent - resolveEvent - groupSplit - groupMerge - refundMode event
AccessControlFacet grantRole - revokeRole - 6 roles: DEFAULT_ADMIN - OPERATOR - PAUSER - CUT_EXECUTOR - CREATOR - REGISTRAR
PausableFacet pause(module) - unpause(module) - per-module pause: MARKET - DIAMOND
DiamondCutFacet diamondCut - add/replace/remove facets, gated by CUT_EXECUTOR_ROLE via TimelockController 48h
DiamondLoupeFacet facets() - facetAddresses() - facetFunctionSelectors() - introspection

Storage: Diamond storage pattern. Each facet has a Layout struct at slot keccak256("predix.storage.<module>"). Append-only - no reordering or removing fields.

Hook (Uniswap v4)

Section titled “Hook (Uniswap v4)”

Contract: PrediXHookV2 (implementation) + PrediXHookProxyV2 (ERC1967 proxy).

Callbacks set via permissions flag in the hook address (salt-mined):

Callback Responsibility
beforeInitialize Set permission flag + init pool state
beforeAddLiquidity Block adding LP if market is resolved / refunded
beforeRemoveLiquidity Block LP modification on resolved/refunded markets
beforeSwap Verify anti-sandwich identity (EIP-1153 transient storage)
afterSwap Enforce post-swap price band check + emit Hook_MarketTraded event
beforeDonate Block donate after endTime (prevents brute-force payout attack)

Key functions:

  • registerMarketPool(marketId, poolKey, yesIsCurrency0) - binds market to v4 pool, verifies canonical PoolKey (lpFee + tickSpacing match)
  • commitSwapIdentityFor(...) - Router commits identity before swap, Hook verifies in beforeSwap
  • proposeTrustedRouter / executeTrustedRouter - 2-step Router rotation (48h timelock)

Hook proxy upgrade - 48h monotonic timelock

Section titled “Hook proxy upgrade - 48h monotonic timelock”

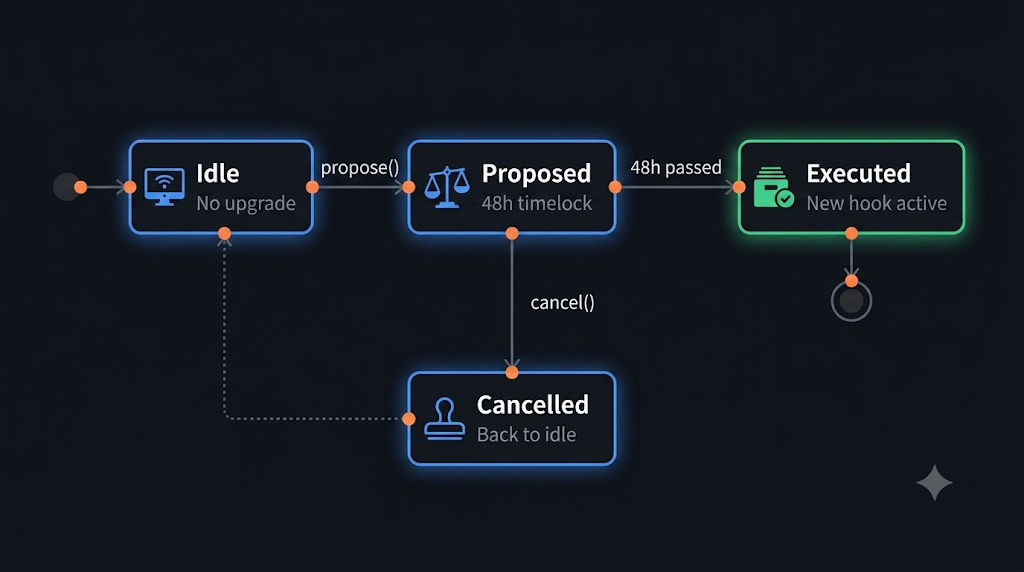

Hook proxy upgrade: Idle -> Proposed (proposeUpgrade) -> 48h wait -> Executed (executeUpgrade) or Cancelled. timelockDuration monotonic, min 48h

  • proposeUpgrade(newImpl) -> readyAt = now + timelockDuration (min 48h).
  • Wait >= timelockDuration -> executeUpgrade(newImpl, sig, readyAt).
  • timelockDuration can only increase (monotonic), never decrease below 48h.

Exchange (CLOB)

Section titled “Exchange (CLOB)”

Contract: PrediXExchange.

Order struct (packed)

Section titled “Order struct (packed)”
struct Order {
  address owner;       // 20 bytes
  uint40 timestamp;    // 5 bytes
  uint8 side;          // BUY_YES/SELL_YES/BUY_NO/SELL_NO
  bool cancelled;
  uint256 marketId;
  uint32 price;        // fixed-point 6 decimals, range 10_000-990_000
  uint128 amount;
  uint128 filled;
  uint256 depositLocked;
}

Entry points

Section titled “Entry points”
  • placeOrder(order) + auto-match loop
  • cancelOrder(orderId) - owner only
  • fillMarketOrder(marketId, side, amountIn, maxFills) - permissionless, taker == msg.sender gate

3 match types

Section titled “3 match types”
  • Complementary: BUY_YES <-> SELL_YES within the same market.
  • Mint (synthetic): BUY_YES + BUY_NO >= $1. Diamond mints the pair, delivers YES to the YES buyer, NO to the NO buyer.
  • Merge (synthetic): SELL_YES + SELL_NO <= $1. Diamond collects + burns, returns USDC.

Shared math library MatchMath ensures preview/execute 1-wei parity.

Router (stateless aggregator)

Section titled “Router (stateless aggregator)”

Contract: PrediXRouter. Invariant: balanceOf(router) == 0 after every public call.

Entry points (exact-in)

Section titled “Entry points (exact-in)”
buyYes(marketId, usdcIn, minYesOut, recipient, maxFills, deadline)
sellYes(marketId, yesIn, minUsdcOut, ...)
buyNo(...)
sellNo(...)

Waterfall

Section titled “Waterfall”
  1. Pull USDC from Permit2.
  2. CLOB leg: exchange.fillMarketOrder(...) - attempt to fill against limit orders.
    • CLOB reverts -> emit ClobSkipped(reason) event, fall back to full AMM.
  3. AMM leg: hook.commitSwapIdentityFor(...) -> poolManager.swap(...) -> unlockCallback(...) extracts amount.
  4. Virtual-NO two-pass: if pool lacks depth -> reduce size with 3% safety margin.
  5. Cleanup: refund dust, assert router balance = 0 (reverts with FinalizeBalanceNonZero if violated).

Oracle (overview)

Section titled “Oracle (overview)”

Contracts: ManualOracle + ChainlinkOracle. Plugin architecture - adding a new oracle = deploy an adapter, approveOracle(addr). Per-source detail: Oracle.

Paymaster (ERC-4337)

Section titled “Paymaster (ERC-4337)”

Contract: PrediXPaymaster. Sponsors gas via EntryPoint v0.7.

  • Owner = Safe multisig (team Safe in beta; four-Safe layout in production).
  • Off-chain signer (BE) signs to verify UserOp eligibility.
  • Policy: sponsor for users eligible through the program.

Quality gates

Section titled “Quality gates”
  • Compile: forge build, EVM cancun, via_ir=true, optimizer_runs=200, bytecode_hash=none.
  • Test: forge test - unit + fuzz + invariant.
  • 7 critical invariants (details in Security & timelock).
  • Format: forge fmt --check.
  • Static analysis: Slither with 0 critical findings.

Upgrade model

Section titled “Upgrade model”
Component Mechanism Delay
Diamond facets diamondCut via CUT_EXECUTOR_ROLE (TimelockController) 48h
Hook implementation propose/executeUpgrade via ERC1967 proxy 48h monotonic
Oracle adapter approveOracle instant (add), revokeOracle instant (remove for new markets) 0h
Exchange / Router Immutable. Deploy new, migrate off-chain N/A

Exchange and Router have no proxy. Changes require redeployment + migration (one-time event). Trade-off: simpler + immutable compared to proxy.

Contract addresses

Section titled “Contract addresses”

PrediX is currently in beta on Unichain mainnet (chain 130). Production mainnet will deploy behind the full four-Safe governance layout - addresses will be populated when production launches.

Core PrediX

Section titled “Core PrediX”
Contract Beta (Unichain mainnet, chain 130) Production (Unichain, chain 130)
Diamond 0xC8F12AF2a396c9C906ac36Bc0AC2279BBb69Ef96 TBA
Hook 0x2EA5EaC8A4E31F0889e86fc135C5eAE8e0b16AE0 TBA
Exchange 0x506367C7c48C95A4843F45d5C2F177B35e69594E TBA
Router 0x39043ba36CF86590668200fb4Be094b9259B917E TBA
ManualOracle 0x8EDD86CC637FA1ca178ac16f85b6777F05AC0ca7 TBA
ChainlinkOracle 0x87c425523Bc2890Ec624D39492CdBbBd9E74eaA2 TBA
Paymaster 0x569ff8c104dc03651777a8c85b7f98722ab68135 TBA
Faucet (relayed) 0x335166bb5cf402b02b58904de5b8bf18c92ba10e N/A

Diamond facets

Section titled “Diamond facets”

Facets are internal to the Diamond proxy. Developers interact with Diamond via the proxy address - individual facet addresses are not needed for integration.

External / infrastructure

Section titled “External / infrastructure”
Contract Beta Production
USDC 0xB3FCA863dD0F6b496cCDDf6497Da5Dad67857F56 (TestUSDC) 0x078D782b760474a361dDA0AF3839290b0EF57AD6 (Circle USDC)
PRX token Not deployed TBA (mint after TGE)
Staking Vault Not deployed TBA
vePRX Not deployed TBA
Uniswap v4 PoolManager 0x1F98400000000000000000000000000000000004 0x1F98400000000000000000000000000000000004
Permit2 0x000000000022D473030F116dDEE9F6B43aC78BA3 0x000000000022D473030F116dDEE9F6B43aC78BA3
EntryPoint v0.7 0x0000000071727De22E5E9d8BAf0edAc6f37da032 0x0000000071727De22E5E9d8BAf0edAc6f37da032

Permit2, EntryPoint, and the Uniswap v4 PoolManager are canonical addresses - identical across beta and production since both run on Unichain mainnet (chain 130).

Chain config

Section titled “Chain config”
Beta Production
Chain ID 130 130
RPC public https://mainnet.unichain.org https://mainnet.unichain.org
Explorer uniscan.xyz uniscan.xyz
Block time ~1s ~1s
Finality ~12-15 min (L2) ~12-15 min (L2)

Governance

Section titled “Governance”

Protocol governance uses role-based access control via the Diamond. All admin operations go through a timelock (1h on beta, 48h+ in production). Beta uses a single team Safe for every admin role except PAUSER (a separate hot wallet for fast emergency response); production will rotate roles into a four-Safe layout per the protocol’s key management policy.

Sync with code

Section titled “Sync with code”

Contract addresses are available from verified source on the block explorer. Do not hardcode in client code - refer to the address table above or the explorer links below.

Verify source code

Section titled “Verify source code”

All contract sources are verified on Uniscan:

https://uniscan.xyz/address/<ADDRESS>#code

ABI files

Section titled “ABI files”

ABI files can be obtained from verified contract source code on Uniscan explorer.

Integration details: Router integration.

Multi-chain (TBA)

Section titled “Multi-chain (TBA)”

Phase 3 - multi-chain deployment (Base / Arbitrum / Optimism / Polygon) via bridge (Wormhole / LayerZero). Details in the roadmap.

For beta integration testing, see Beta info.
