WebSocket

Real-time streaming for orderbook updates, price changes, trades, and user portfolio events.

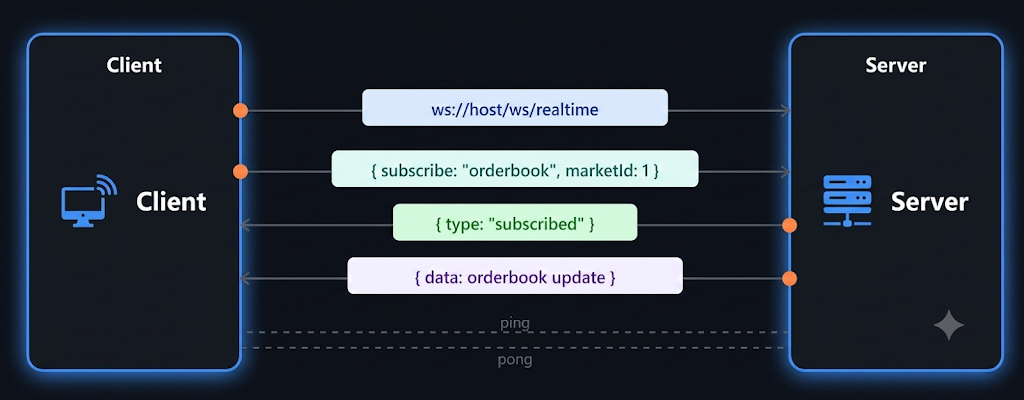

_{WebSocket flow: Client connects -> subscribes to topic (orderbook, trades) -> server confirms -> pushes data updates -> ping/pong keepalive}

Connection

Endpoint: wss://<host>/ws/realtime
Auth (optional): Sec-WebSocket-Protocol: predix.bearer, <session_token>

Authenticated connection required for user-specific topics (positions, orders, portfolio). The session token is passed via the Sec-WebSocket-Protocol header in the WebSocket upgrade - the browser surfaces this as the second argument to the WebSocket constructor.

Subscribe / Unsubscribe

// Subscribe to market orderbook
{ "type": "subscribe", "topic": "orderbook", "marketId": "1" }

// Subscribe to user positions (requires auth)
{ "type": "subscribe", "topic": "user-positions", "subject": "0xYourAddress" }

// Unsubscribe
{ "type": "unsubscribe", "topic": "orderbook", "marketId": "1" }

Topics

Market topics (public)

Require marketId parameter.

Topic	Data	Description
orderbook	Bid/ask levels	Real-time orderbook depth updates
prices	Latest YES/NO price	Price tick on every trade
trades	Trade events	New trades as they happen

User topics (authenticated)

Require subject = user wallet address. Must match authenticated session.

Topic	Data	Description
user-trades	User’s trades	When your orders fill
user-orders	Order status	Place, fill, cancel events
user-positions	Position changes	Balance updates
user-portfolio	Portfolio value	Aggregate P&L updates

Message format

Server -> Client

// Subscription confirmed
{ "type": "subscribed", "topic": "orderbook", "marketId": "1" }

// Full snapshot (initial state after subscribe)
{ "type": "snapshot", "topic": "orderbook", "marketId": "1", "seq": 1, "data": { ... } }

// Delta update (incremental changes)
{ "type": "delta", "topic": "orderbook", "marketId": "1", "seq": 2, "changes": [ ... ] }

// Ping (client must respond with pong within 10s)
{ "type": "ping" }

// Error
{ "type": "error", "code": "INVALID_TOPIC", "message": "Invalid topic" }

Note: Data delivery is poller-based (1s interval), not event-driven push. The server polls the indexer, diffs snapshots, and broadcasts deltas.

Client -> Server

{ "type": "pong" }

Limits

Limit	Value
Subscriptions per connection	50
Connections per IP	20
Global connections	5,000

Example - TypeScript

const ws = new WebSocket(`${WS_BASE_URL}/ws/realtime`);

ws.onopen = () => {
  // Subscribe to market orderbook
  ws.send(JSON.stringify({
    type: 'subscribe',
    topic: 'orderbook',
    marketId: '1',
  }));

  // Subscribe to market trades
  ws.send(JSON.stringify({
    type: 'subscribe',
    topic: 'trades',
    marketId: '1',
  }));
};

ws.onmessage = (event) => {
  const msg = JSON.parse(event.data);

  if (msg.type === 'ping') {
    ws.send(JSON.stringify({ type: 'pong' }));
    return;
  }

  if (msg.type === 'snapshot') {
    console.log(`[${msg.topic}] full:`, msg.data);
  }
  if (msg.type === 'delta') {
    console.log(`[${msg.topic}] update:`, msg.changes);
  }
};

Example - Python

import asyncio
import json
import websockets

async def listen():
    uri = f"{WS_BASE_URL}/ws/realtime"
    async with websockets.connect(uri) as ws:
        # Subscribe
        await ws.send(json.dumps({
            "type": "subscribe",
            "topic": "prices",
            "marketId": "1",
        }))

        async for message in ws:
            msg = json.loads(message)
            if msg["type"] == "ping":
                await ws.send(json.dumps({"type": "pong"}))
            elif msg["type"] == "snapshot":
                print(f"[{msg['topic']}] full:", msg["data"])
            elif msg["type"] == "delta":
                print(f"[{msg['topic']}] update:", msg["changes"])

asyncio.run(listen())

Authentication for user topics

// Get session token via SIWE
const challengeRes = await fetch('/api/auth/challenge');
const { nonce } = await challengeRes.json();

const signature = await wallet.signMessage({ message: siweMessage(nonce) });

const verifyRes = await fetch('/api/auth/verify', {
  method: 'POST',
  body: JSON.stringify({ address, signature }),
});
const { token } = await verifyRes.json();

// Connect with auth - pass the token via the Sec-WebSocket-Protocol header.
// In the browser, the second argument to `WebSocket` becomes that header.
const ws = new WebSocket(`${WS_BASE_URL}/ws/realtime`, ['predix.bearer', token]);
